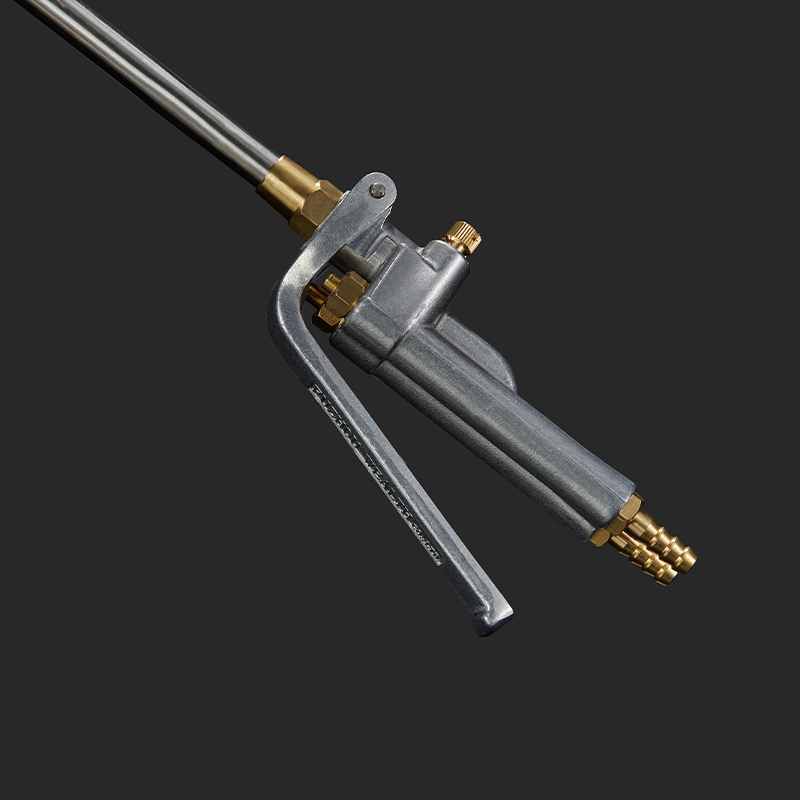

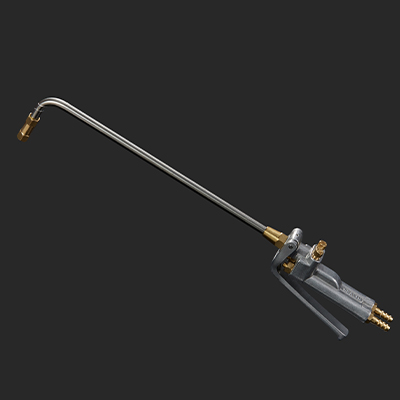

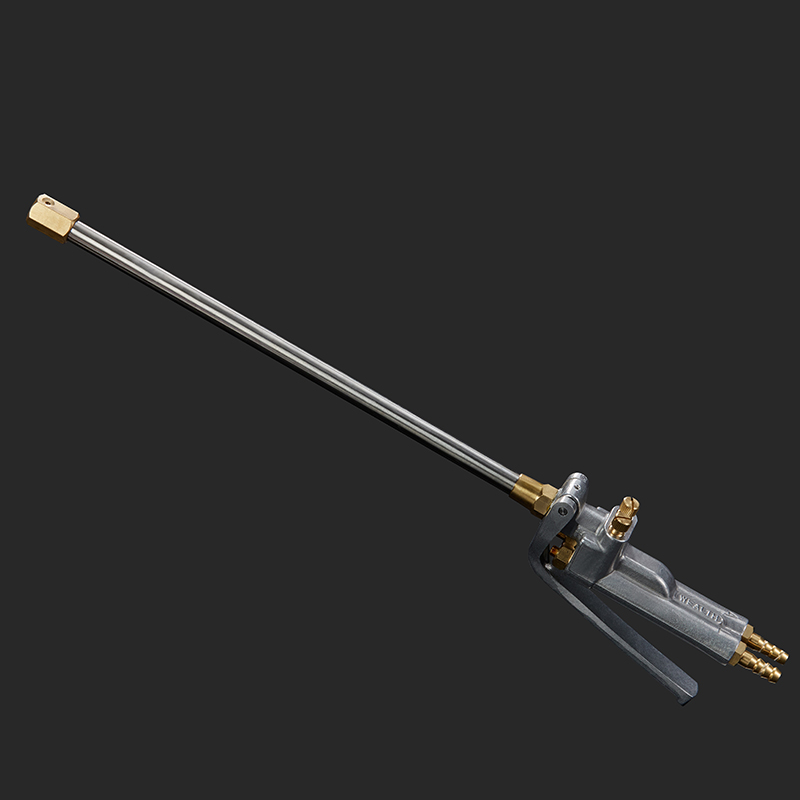

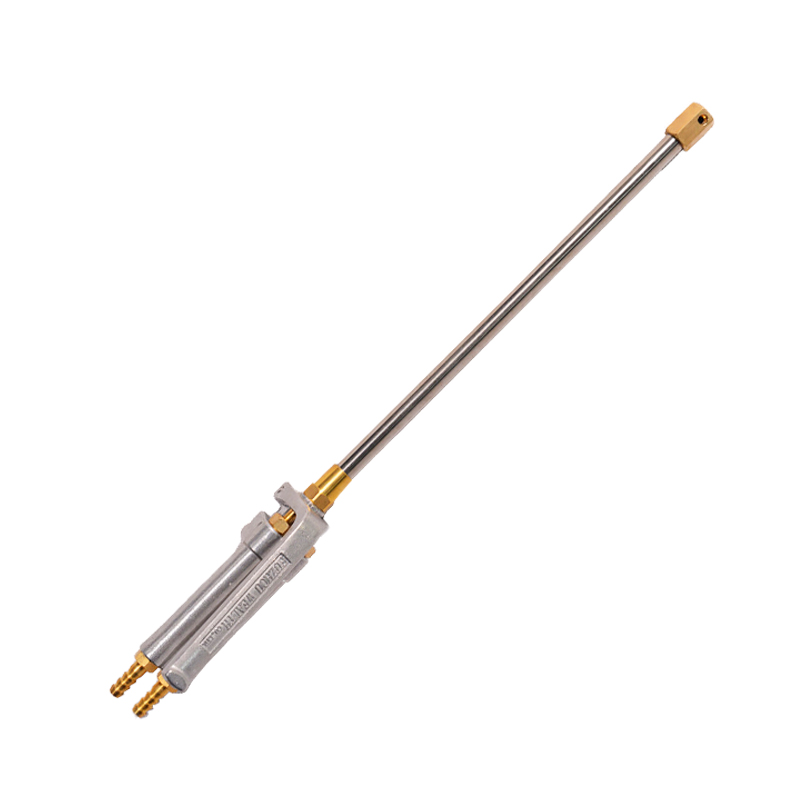

The output gas and atomization amount of single tube copper head double spray gun can be adjusted. The output gas gear is used for paint drying and cleaning mold residue, and the output liquid gear is used for spraying liquid paint. The discharge and atomization volume of the spray gun can be adjusted. The discharge gear is used for paint drying and cleaning mold residue, and the discharge gear is used for spraying liquid paint.
Method of Use
① The gas joint (A or AIR mark) is connected to the air source pipe, the liquid inlet joint (O or OI mark) is connected to the liquid conveying pipe, and the iron wire or throat hoop is solid;
(2) The other end of the liquid conveying pipe is connected with the paint tube with pressure. Pay attention to the liquid pressure shall not be higher than the pressure of compressed air;
③ Operation procedures: Open the first gear (air source spool) only compressed air, and open the first and second gear (liquid spool) spraying paint;
(4) The gas output and spray volume can be adjusted by adjusting the gas regulating spool and liquid regulating spool.
Model: WF-SPT (Total length of airbrush)
Technical parameters: compressed air pressure: 0.4~0.8MPa, effective lifting height of paint <4m;
Commonly used spray gun length: 400mm, 450mm, 500mm; The length of the spray gun can be customized to double at 50mm.
Precautions
(1) It is best to clean the spray gun in time after use, especially spray adhesion or paint with solid particles. Cleaning method: Insert the paint conveying pipe into clean water (or organic solvent) spray for 2 ~ 3 minutes, you can achieve the cleaning effect;
② If the spray gun is found to be blocked, you can block the nozzle with your thumb, and open the first and second gear at the same time, the blockage may be returned from the paint pipeline, to remove the blockage.
